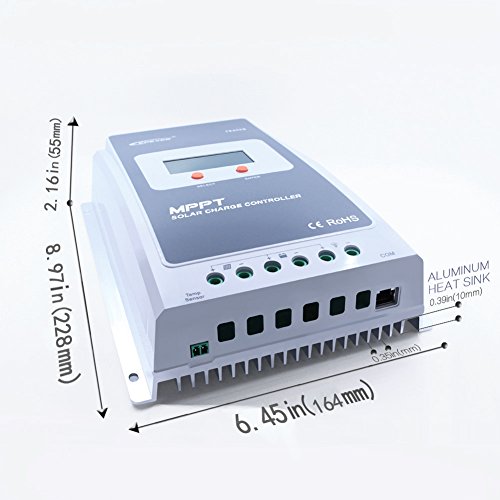

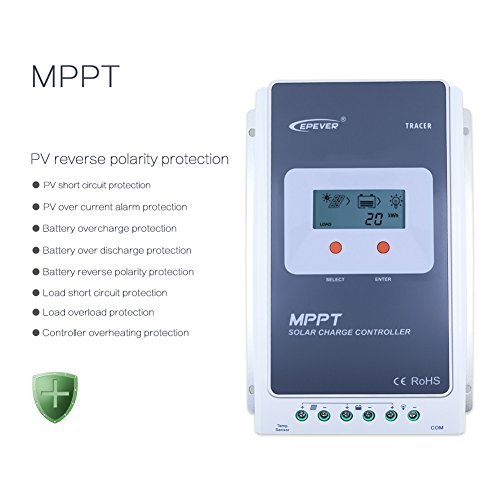

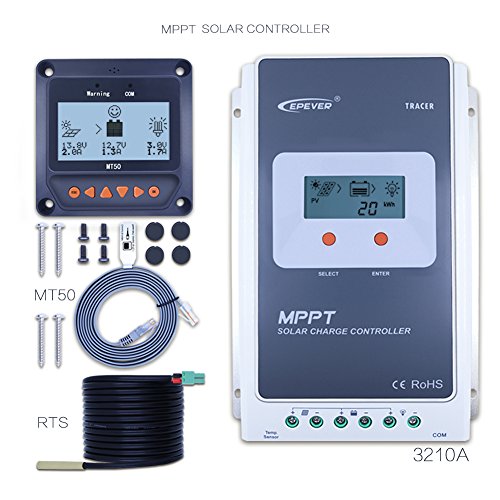

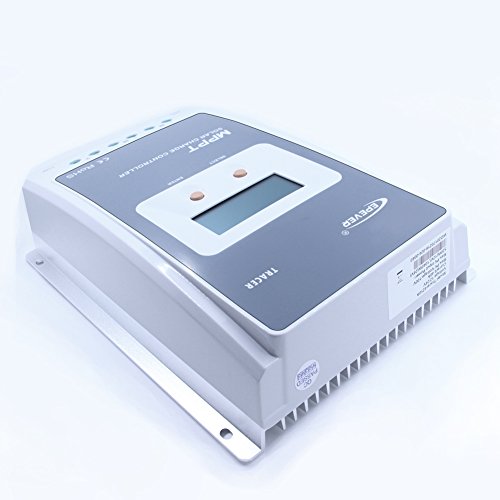

Tracer 3210A+MT50+RTSYour Satisfaction is our Highest Priority, contact us firstly if you have any question.MPPT Tracer3210A * Accurately recognizing and tracking of multiple power point * User programmable for battery types, load control etc. * Common positive grounding design. • Max.PV input power: 12V/390W,24V/780W • Rated charge current: 30A • Battery voltage range: 9V~32V • Communication: RS485(RJ45 interface) • Dimension: 8.97in x 6.46in x 2.17in • Weight: 2.65lb • Enclosure: IP30 MT50(Backlight ) * Compatible with EPever Tracer-A, Tracer-BN , LS-B, LS-BP, VS-BN, eTracer, iTracer series controllers• Self-consumption : 1．Backlight and acoustic alarm on 2．Backlight on3．Backlight off • Faceplate dimensions: 3.86in×3.86 in • Frame dimensions: 4.49in ×4.49 in • Connector type: RJ45 • Meter cable : Standard 6.56ft • Meter weight: 0.42lb • Ambient Temperature: -4℉~158℉ RTS • Name: RTS300R47K3.81A • Line length: 9.84ft • Connector: 0.0125ft /2P • Testing temperature: -131℉~257℉Package including：• MPPT Tracer 3210A 1x MPPT Tracer 3210A 1xEnglish Manual• Remote Meter MT50 1x MT50 LCD Display Remote Meter1x 6.56ft Communication cable4xST4.2x32 self-tapping screws 4xM4x8 pan head screws 4xassociated screws 1xEnglish Manual• RTS: 1x Remote Temperature Sensor RTS300R47K3.81A
