Question 1

Do they allow the use in line (in/out) or do I need tees hose connectors ?

Accepted Answer

First let me say that although I am a Rainbird fan in general. I CANNOT recommend this product. This product was unreliable and would not keep the adjustments. (See my review of the product.)May I recommend http://www.amazon.com/gp/product/B004RUH8A4/ref=oh_aui_detailpage_o03_s00?ie=UTF8&psc=1Next the proper way to do this is to purchase these risers, then add up to six sprinklers with 1/4" hose. If you try and T off of each sprinkler head,.....you will end up with the closest sprinkler with good pressure,.....but lose pressure down the line.http://www.amazon.com/Rain-Bird-MANIFRE1PK-Irrigation-Manifold/dp/B003MZ1ESW/ref=sr_1_1?s=lawn-garden&ie=UTF8&qid=1432538339&sr=1-1&keywords=1%2F2+riser+to+4+port+sprinklerYou will use these as T's. As you can see, these simply attach to the sprinkler line which is how most sprinkler heads are attached. This will then convert a single full power sprinkler head to "up to six" micro sprinklers. Of course you must also purchase a low pressure regulator for that zone. (According to Rainbird, you cannot run any of these micro sprinklers at full pressure. They will just blow apart.) Such as this http://www.amazon.com/gp/product/B003MZ1EQO/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1. I never did try to run the micro sprinkler system at full pressure. But on average a 20 pound pressure drop does not seem like much. Perhaps one could get away with it.  After fighting with Rainbirds drip irrigation spikes,.....then switching to Orbit's. I ended up with a very nice low pressure sprinkler system. Set it once and forget it for almost two years now. With these Rainbird micro sprinklers.....I would set them, turn off the sprinkler system. Turn it back on and some of them would not work. Reset,.....turn off and same thing when turned back on. Do yourself a favor and purchase the Orbit stakes. Everything else Rainbird makes is good stuff. T's are not the way to go. The risers are also cheap and the proper way to go for even pressure. Simply pull the rubber plug off of each port you are going to use. Good luck.

Question 2

the 2 ends of the barbed connector that comes with each bubbler are slightly different.  does it matter which end I insert into the 1/4" line?

Accepted Answer

The barb with the point normally goes into the 1/2" distribution tubing, it has the point to help you pierce the wall.  Hope this helps!

Question 3

Max diameter answers range from 4" to 5' (6' in mfg description) - why?

Accepted Answer

As you open the valve, the water flow is greater so pressure will be lower. As you close the valve the diameter will increase

Question 4

What is the GPH on this?

Accepted Answer

Adjustable from 0 to 13 GPH

Color	Black
Size	Pack of 1
Style	Umbrella on Stake
Frame Material	Plastic
Height	0 inches
Length	0 inches
Weight	0.09 Pounds
Width	0 inches
Shape	Circle
Material Type	Plastic
Number of Items	1
Power Source	Water
Features	Adjustable Flow, Barbed Fitting for Quick Attachment
Usage	Rain
Included Components	4 staked umbrella bubblers
Batteries Included?	No
Brand	Rain Bird
Manufacturer	Rain Bird
Item model number	MUF-SPK4S
Product Dimensions	20.32 x 10.16 x 1.27 cm; 9.56 g
ASIN	B003MZ1EV4

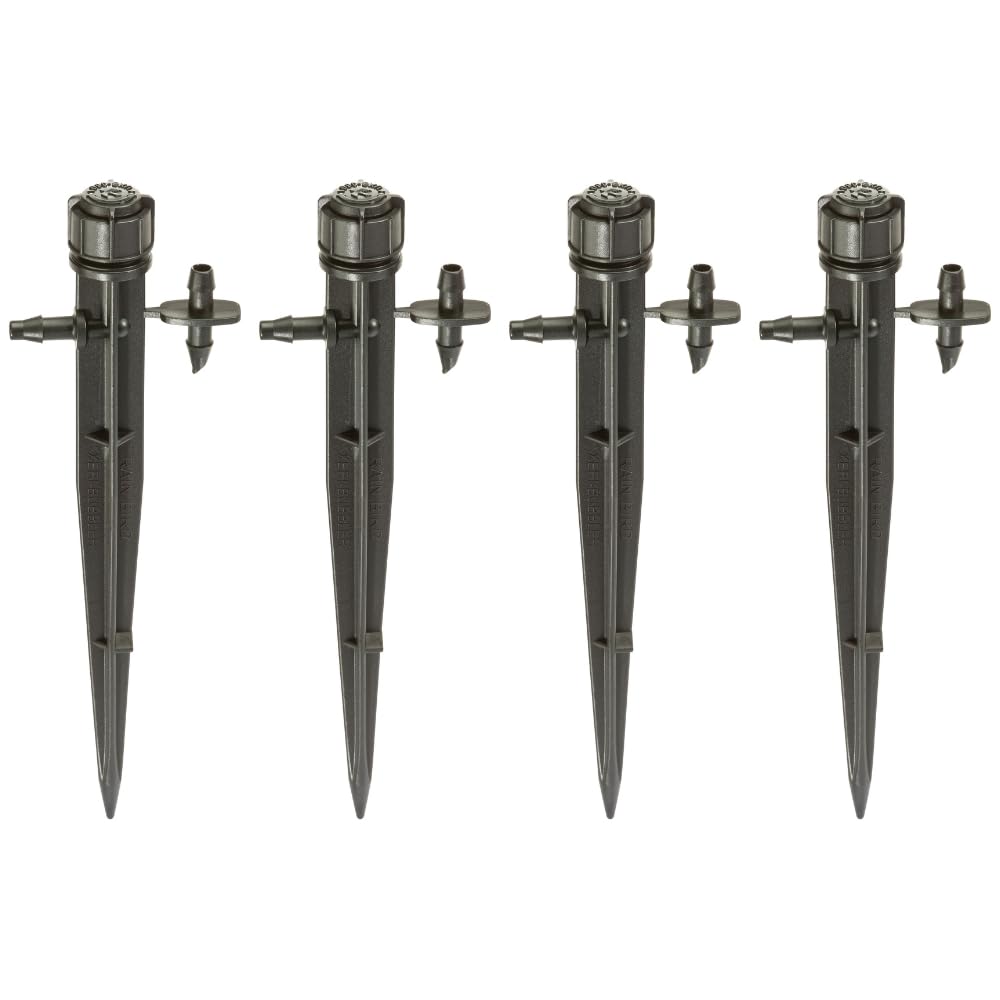

Rain Bird Drip Irrigation Micro-Bubbler on Stake
